Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width

Ι alreay εγκαταστήστε την επίπεδες ευκίνητες ζώνη μεταφορέων και τις εργασίες καλά. Καλή επιχείρηση με τη συμπαθητική υπηρεσία και υψηλός - ποιότητα και υψηλή φήμη

—— Αυγοτάραχα Mervyn

Η ποιότητα ζωνών μεταφορέων πλέγματος αλυσίδων είναι εντάξει. Ένας από τον αξιόπιστο προμηθευτή μας, αγαθά είναι παραδοθείσα έγκαιρη και συμπαθητική συσκευασία.

—— Dina Chek

Τέλεια επίπεδη ζώνη μεταφορέων καλωδίων έχουμε το αγορασμένο, χαμηλότερο κόστος και την καλή υπηρεσία.

—— Bahram Vand

Είμαι Online Chat Now

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width

Μεγάλες Εικόνας :  Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1m
Τιμή: 15USD/suqare meter
Συσκευασία λεπτομέρειες: Κάρτον από ξύλο
Χρόνος παράδοσης: 10-15 εργάσιμες ημέρες
Όροι πληρωμής: L/C, T/T, Western Union
Δυνατότητα προσφοράς: 1000 τετραγωνικά μέτρα / μήνα
Λεπτομερής Περιγραφή Προϊόντος
Εφαρμογή: Σύστημα μεταφορέων Πακέτο: Κουτί από αντιστοιχισμένο ξύλο
Δείγμα: Υποστήριξη Ελάχιστο πλάτος: 152 χιλιοστά
Κλειδιά: ζώνη μεταφορέων συνδέσεων πιάτων Γρανάζια Υλικό: Ανθρακούχο χάλυβα, 201 304 316 Ανοξείδωτο ατσάλι
Σειρά πάχους πιάτων: 23mm Σχήμα τρύπας: Τετραγωνική τρύπα
Χρησιμοποιήστε το Χρόνο: 3-5 έτη Χρόνος παράδοσης: 10 ημέρες μετά από να λάβει την πληρωμή σας
Επιθεώρηση: Τηλεοπτική επιθεώρηση Διάμετρος καρφιτσών: 4.9mm
Απόθεμα: Να έχεις αποθέματα. Αντοχή στη Θερμοκρασία: Μέχρι 1200°C
Επιφανειακή Επεξεργασία: Γαλβανισμένο ή Γυαλισμένο
Επισημαίνω:

1.2m Conveyor Belt

,

1.8m Conveyor Belt

,

Food Grade Conveyor Belt

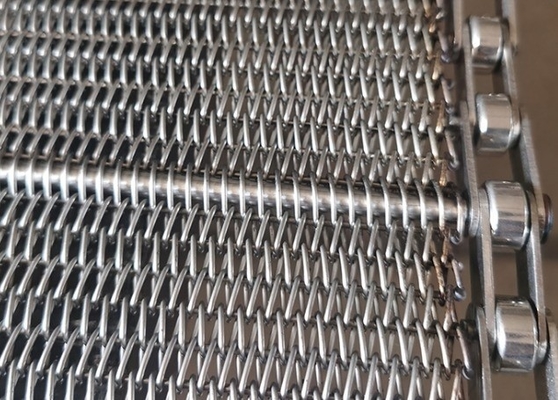

Food Grade 304 1.2m wide 1.5m wide  1.8m wide Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt


Stainless steel chain conveyor is a robust material handling system designed to transport products, components, or materials along a defined path. It consists of interlinked stainless steel chains (often roller chains, flat-top chains, or modular plastic belts on stainless frames) that form a continuous loop driven by sprockets. The chains run on stainless steel tracks or guides, supported by a rigid stainless steel frame. Key features include high strength, corrosion resistance, and suitability for demanding environments.



Material SS304, SS316, SS316L, SS430, Galvanized wire, customized
Spiral wire diameter 0.5mm - 3mm, customized
Rod wire diameter 0.5mm - 4mm, customized
Spiral pitch 5-50mm, customized
Rod pitch 5-50mm, customized
Wide Mesh belt wide (without chain)/ Conveyor belt wide ( with chain )
Length 1m - 10m, customized

Advantages:

1. Superior Corrosion Resistance: Resists rust, chemicals, water, steam, and cleaning agents, making it ideal for wet, humid, or corrosive environments (food, chemical, marine).

2. High Hygiene & Cleanability: Smooth, non-porous surfaces prevent bacterial growth and allow for easy. Essential for food, beverage, pharmaceutical, and medical applications.

3. High Temperature Resistance: Maintains strength and integrity under significant heat (e.g., ovens, washers, sterilizers, foundries).

4. Strength & Durability: Withstands heavy loads, impacts, and abrasive materials better than many alternatives. Long service life.

5. Sanitary Design: Minimizes areas where debris can accumulate, meeting strict sanitary regulations (FDA, USDA, 3-A).

6. Aesthetic Appeal: Maintains a clean, professional appearance over time.

7. Resistance to Oxidation & Staining: Performs well outdoors or in atmospheres prone to oxidation.

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width 0

How to use it:

1. Installation: Securely mount the rigid frame, ensuring proper alignment and leveling. Install drive unit (motor, gearbox) and tail/take-up section.

2. Chain Tensioning:Correctly tension the chain using the take-up mechanism not too tight (excessive wear) or too loose (slippage, derailment).

3. Loading:Products are typically loaded onto the chain surface manually, via feeders, or from preceding equipment. Ensure load is within capacity and evenly distributed.

4. Operation: Start the drive system. Chains move continuously or index (start/stop) along the track, carrying the product. Speed is controlled via the drive.

5. Unloading: Products are offloaded at the end (or intermediate points via pushers/diversions) manually, by gravity, or onto another conveyor.


Cleaning & Maintenance:

Regular Cleaning: Use water, steam, or approved sanitizers. High-pressure wash is common. Ensure proper drainage.

Lubrication: Use food-grade or compatible lubricants sparingly if required (some designs use self-lubricating chains or run dry). Avoid contamination.

Inspection: Regularly check for chain wear (stretch), damaged links, worn sprockets, proper tension, bearing condition, and frame integrity.

Component Replacement: Replace worn chains, sprockets, guides, and bearings promptly to prevent failures.

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width 1

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width 2

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width 3

Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt 1.2m 1.5m 1.8m Width 4
